One flange to accommodate Niryo accessories with the Easy Connect system, and another to fit your usual tools.

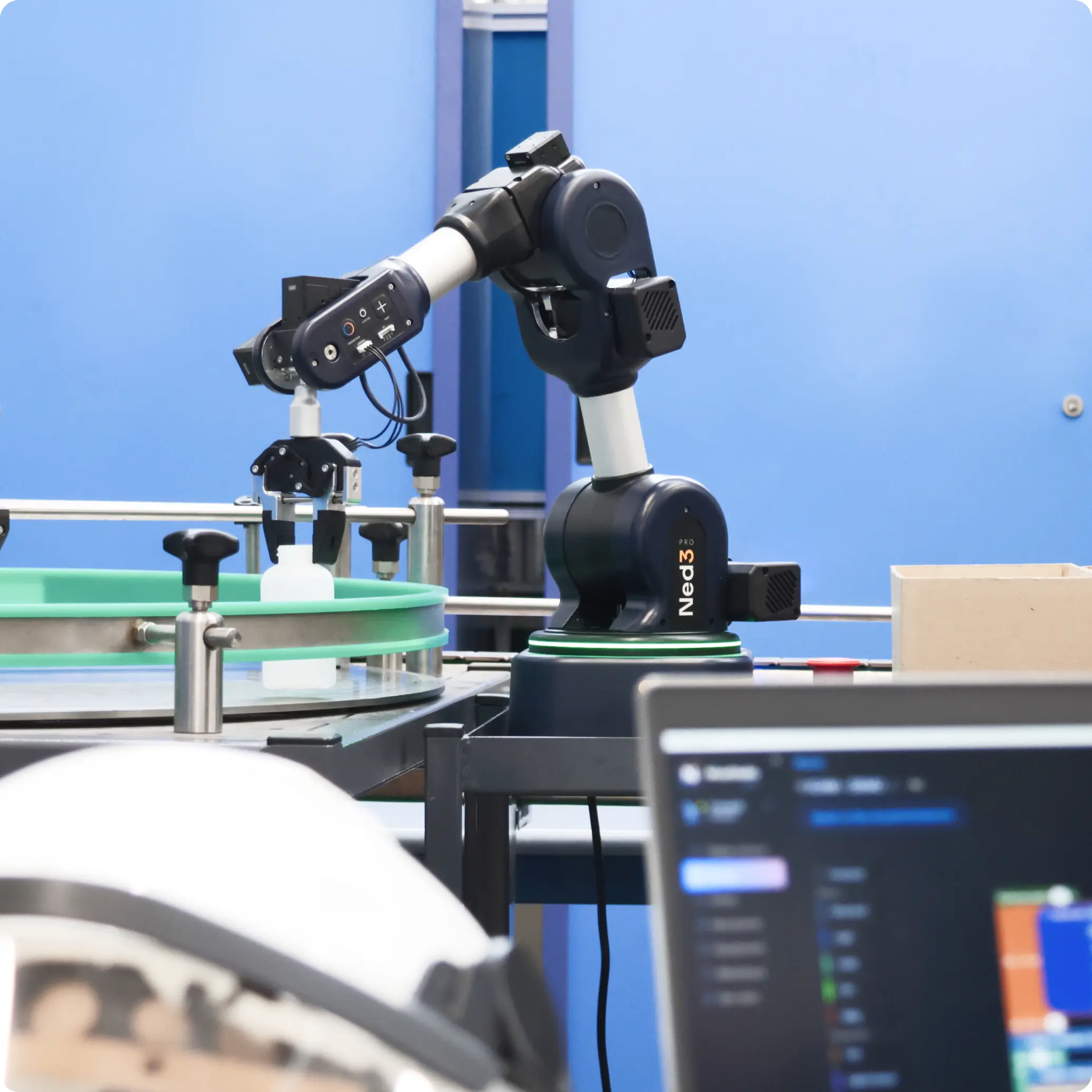

Ned3 Pro is a compact and intuitive 6-axis robotic arm designed to automate repetitive tasks. Easy to integrate, it enhances productivity and precision while offering flexible and scalable automation.
One flange to accommodate Niryo accessories with the Easy Connect system, and another to fit your usual tools.
It becomes kids friendly to program your robot. Control your robot without programmation system with smooth and precise movement
Connect your accessories and infinite number of sensors to leave room for your most complex projects.
Easy way to understand current statement and situations of your robot with intuitive ledring colors
Teach, work and learn with silent steppers. Perfect to stay focus and practise with confort during hours.
500 g / 1,1 lbs
(z = 20mm TCP)
500 mm / 19,68 In
+-0,3mm
2,4GHz & 5GHz
1Gb/s
2.0 - 3.0
5.0
A team of experts who assist you throughout your project.
NoCode programming.
With Niryo, benefit from compact solutions, easy to program and adapted to small series, prototyping or multiple collaborations, for rapid and efficient integration on various lines.
With a repeatability of ±0.3 mm, our robot guarantees uniform execution, eliminates human variations and ensures impeccable quality, even on the most complex tasks.
Wi-Fi: 2,4GHz & 5GHz
USB: 2.0 (2) – 3.0 (2)
Ethernet: RJ45 – 1Gb/s
Emergency Stop: 1
Digital inputs: 3
Analog inputs: 2
Analog outputs: 2
Conveyor interface: 2
IR Sensor interface: 1
Vacuum pump interface: 1
Digital inputs : Type NPN
[DI4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
5 |
mA |
Digital outputs : Type NPN
[DO4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
250 |
mA |
Analog inputs
[AI1 – AI2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
250 |
mA |
Resolution |
- |
12 |
Bit |
Analog outputs
[AO1, AO2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
250 |
mA |
Resolution |
- |
- |
Bit |
Save button
A short press on this button saves the robot’s position on Niryo Studio.
Freemotion button
Pressing and holding this button deactivates the torques in the motors and performs the FreeMotion operation
Gripper connector
This connector is used to control the Custom Gripper, Large Gripper or Adaptive Gripper.
Electromagnet connector
This connector is specifically for connecting Niryo’s electromagnet. There is also a digital input for connecting a sensor, for example. Programming the input/output can be done through Niryo Studio.
Digital inputs : Type NPN [DI4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Digital Outputs : Type PNP [DO4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
- |
250 |
mA |
Analog inputs [AI1 – AI2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
- |
20 |
mA |
Resolution |
- |
12 |
Bit |
Analog Outputs [AO1 – AO2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
- |
10 |
mA |
Resolution |
- |
12 |
Bit |
Software and hardware solutions for robotics and AI.
Software for robot simulation and programming.
Open-source library for visual block programming.
Open-source framework for robot software development.
Library for controlling Niryo robots.
Open-source framework used in robotics for machine learning tasks.
Open-source library for computer vision and image processing.
Proprietary programming environment and language used extensively in robotics for numerical simulation.
Programming language known for its simplicity and versatility in various applications, including robotics.
Width: 200,00mm
Depth: 200mm
Height: 443,95mm
Weight: 7,4kg / 16,3 lbs
Width: 200,00mm
Depth: 200mm
Height: 443,95mm
Weight: 7,4kg / 16,3 lbs
Wi-Fi: 2,4GHz & 5GHz
USB: 2.0 (2) – 3.0 (2)
Ethernet: RJ45 – 1Gb/s
Emergency Stop: 1
Digital inputs: 3
Analog inputs: 2
Analog outputs: 2
Conveyor interface: 2
IR Sensor interface: 1
Vacuum pump interface: 1
Digital inputs : Type NPN
[DI4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
5 |
mA |
Digital outputs : Type NPN
[DO4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
250 |
mA |
Analog inputs
[AI1 – AI2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
250 |
mA |
Resolution |
- |
12 |
Bit |
Analog outputs
[AO1, AO2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
0 |
250 |
mA |
Resolution |
- |
- |
Bit |
Save button
A short press on this button saves the robot’s position on Niryo Studio.
Freemotion button
Pressing and holding this button deactivates the torques in the motors and performs the FreeMotion operation
Gripper connector
This connector is used to control the Custom Gripper, Large Gripper or Adaptive Gripper.
Electromagnet connector
This connector is specifically for connecting Niryo’s electromagnet. There is also a digital input for connecting a sensor, for example. Programming the input/output can be done through Niryo Studio.
Digital inputs : Type NPN [DI4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Digital Outputs : Type PNP [DO4]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
- |
250 |
mA |
Analog inputs [AI1 – AI2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
- |
20 |
mA |
Resolution |
- |
12 |
Bit |
Analog Outputs [AO1 – AO2]
Settings |
Min |
Max |
Units |
---|---|---|---|
Voltage |
0 |
5 |
V |
Current |
- |
10 |
mA |
Resolution |
- |
12 |
Bit |
Software and hardware solutions for robotics and AI.
Software for robot simulation and programming.
Open-source library for visual block programming.
Open-source framework for robot software development.
Library for controlling Niryo robots.
Open-source framework used in robotics for machine learning tasks.
Open-source library for computer vision and image processing.
Proprietary programming environment and language used extensively in robotics for numerical simulation.
Programming language known for its simplicity and versatility in various applications, including robotics.
The robots and accessories are sold with 1 year of manufacturer and publisher warranty which runs from the date of receipt of the robots shown on the delivery slip.
The maximum manufacturer’s warranty period is 36 months.
The customer can request an extension of 12 or 24 months from the initial purchase.
During the first year, until the 11th month completed (see delivery date), the customer may request an extension for a maximum of 24 additional months.
During the second year, until the 23rd month completed (see delivery date), the customer may request an extension for a maximum of 12 additional months.
Niryo reserves the right to refuse the customer an extension request during operation if it is judged that the latter was not suitable and could have led to degradation of the equipment and/or software.
For all of its robots, Niryo includes 1 year of manufacturer and publisher warranty on :
The guarantee covers :
The means implemented to resolve problems are at the discretion of Niryo and may include, but are not limited to :
Excluded from the manufacturer’s and publisher’s warranty :
