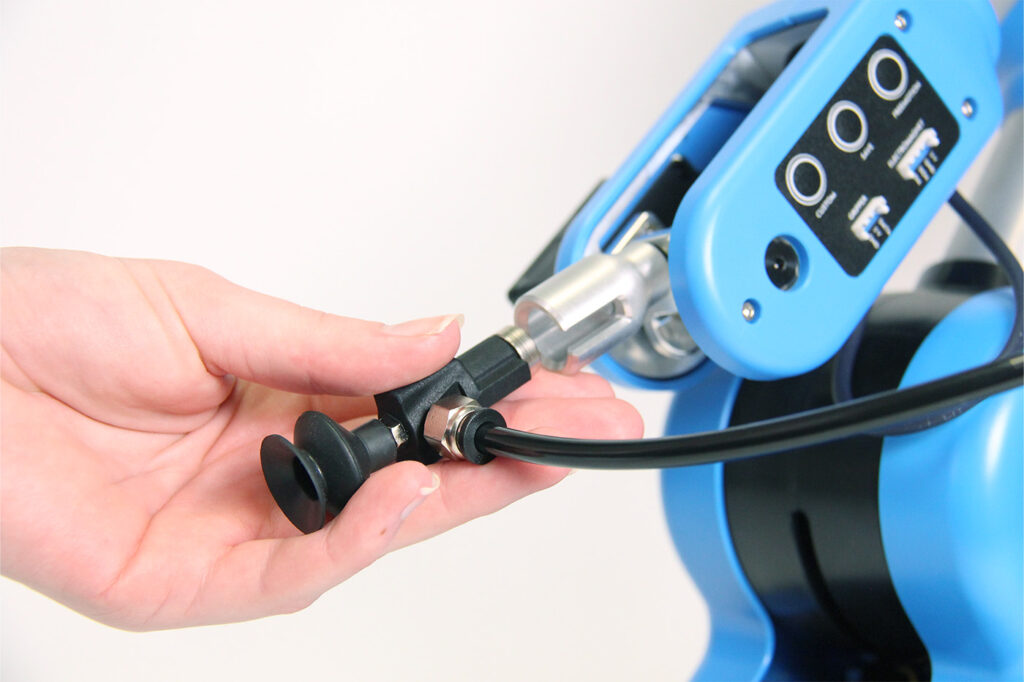

A vacuum pump designed for education and research robot

A vacuum pump is very efficient for fast and reliable pick and place, and allows you to pick some objects that a normal gripper can’t pick. Ex : take out the cover of a flat box, move soda cans from the top, pick and place large objects with a flat surface.

Most vacuum pumps are making so much noise, you just can’t stand and work near the robot, it is too disturbing. The pump we’ve developed is different : it’s operating silently, with the same efficiency as a vacuum pump, for the same price. A servomotor actuates a syringe which pumps the air out.

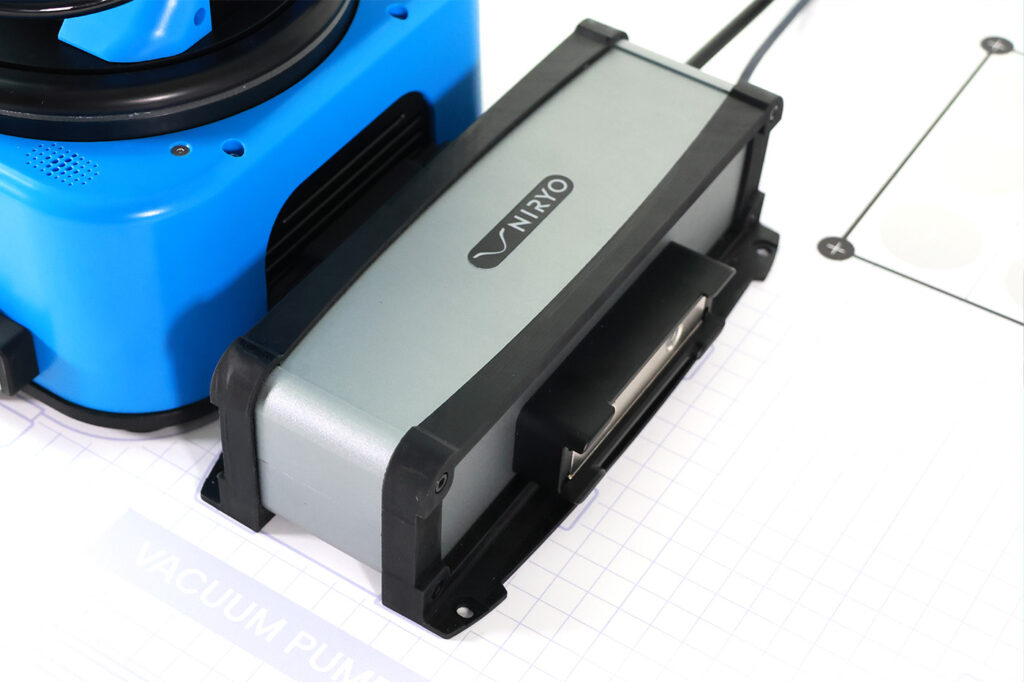

We’ve also made a custom Niryo box for this vacuum pump!

.

Any questions or concerns? Please reach out tu us and leave a message:

🇬🇧 +44 1273 257873

🇺🇸 +1 415-858-1425

Additional information

Weight 0.250 kg
Dimensions 200 × 100 × 100 mm

Technical Specifications

Specification Value
Vacuum pump control Integrated XL320 Servo Motor
Weight (on the end effector tool) 10 g
Total weight 170 g
Payload 300 g
Power supply 7.6 V
Operating temperature 5-45°C
Vacuum tube dimension 20 mm
Picking distance from end effector base 47 mm
