When to Choose a 6-Axis Robotic Arm?

You might be wondering why many companies use 6-axis robotic arms. Why not 3, 4, 5, or even 7 axes?

As you may guess, these robots are well suited for certain applications and less for others. But which ones?

In this article, we explain when choosing a 6-axis robotic arm makes sense for your application.

What Are the Main Characteristics of a 6-Axis Robotic Arm?

A 6-axis robotic arm can reach any point within its workspace, with any given orientation. This makes it optimal for many tasks. For example, you can :

• Get a tool from the bottom (ex: screwdriver), turn it around, and place it back
• Open a drawer, grab an object, and close the drawer
• Write text on a desk, on a wall, or any other surface.
• …

There are typically two ways to control a 6-axis robotic arm:

• Give the angle for each of the 6 joints
• Use pose target (translation (x,y,z) and rotation (x,y,z) from the origin of the robot)

These control methods allow for high precision, but they are not always obvious, especially when you need to do a complex move, with a complex orientation. Finding the points by yourself, just with the numbers, can be quite a long and hazardous task.

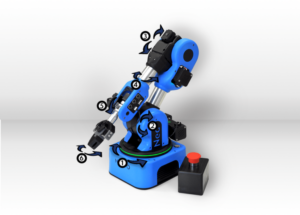

That’s why some robots have a “learning mode”, like Ned2, to allow you to “program” the robot just by moving it with your hands. The robot will then know its precise position, thanks to encoders on all six axes.

Is 6 axis necessary for all use cases ?

No, a 6 axis robotic arm can be a total overkill solution in some cases. For specific applications that require precision but not complex movement, a simpler robot may be a better option.

Let’s say you are building a basic 3D printer, or CNC machine. Using 6 axes may provide additional flexibility, but honestly, it will be a perfect example of over-engineering. Such a machine typically requires only three axes (translation x, translation y and translation z), the rotations are not needed, since you operate slice by slice on the z axis.

OK, but now, how to handle a bunch of 3D printers ? The machine itself can be made with only 3 axis, but how do you automate a line of those ?

Here comes the 6 axis robotic arm. This robot will be able to pick a 3D printed part, press some buttons and launch the next printing. With one robot you can control many 3D printers.

Check out examples of tasks you could automate with a six-axis robotics arm :

• Pick and place
• Flacons filling
• Blending
• Bottles sealing
• Screwing
• Labels applying
• Lids closing

Read more

Sometimes, 6 axis is not enough

Imagine now that you are operating in a difficult environment with many obstacles. You use motion planning to move the robot to pick some objects, and the planning often fails because there is no mathematical solution.

Although a 6 axis robotic arm can reach any place, this becomes more challenging if there is an obstacle in the way. A 7 (or 8, 9…) axis robotic arm has its place here. It will be able to bypass an obstacle, and reach an object the way you want.

A 7 axis robot will also be more suited for very precise industrial use cases, such as welding. You can choose a different configuration to reach an object, and avoid some singularities (points where the robot will be “stuck”). The robot can then be prepared to optimize complex trajectories with many points to reach.

As you can guess, this kind of robot is mostly used for industrial use cases with specific requirements. For most standard applications, it is not necessary.
.

It really depends on your application, and what you want to achieve. First, clearly define the tasks you need to perform:

• Pick-and-place tasks requiring bottom grasping?
• Press buttons on a machine, load it, unload it ?
• Interact with a coworker to give him/her some tools and hold some objects before placing them in a box ?

In those cases you may need a 6 axis robotic arm. Mostly you would want to get one of those (or many of those !) in the following general situations :

• You want to do complex movements.
• Your application is not just one single task (ex: cutting wood on a table), and it would be too complicated to integrate many different machines.
• You want to be able to reprogram the robot, to use it for totally different tasks.

Not sure about buying an industrial 6 axis robotic arm ? We both know that they can be very expensive.

There is now a new trends in robotics : accessible robots. They are perfect for professional training, education, to make a small assembly line without exploding the budget and to optimize process in labs, industries or R&D centers.

Here at Niryo, we have thought about this problem – robots can be quite expensive and hard to use. That’s why we have created an easy to use and low cost 6 axis robotic arm, Ned2. Ned2 is a perfect solution to introduce robotics in your team either you’re working in education, labs, research or industry.
