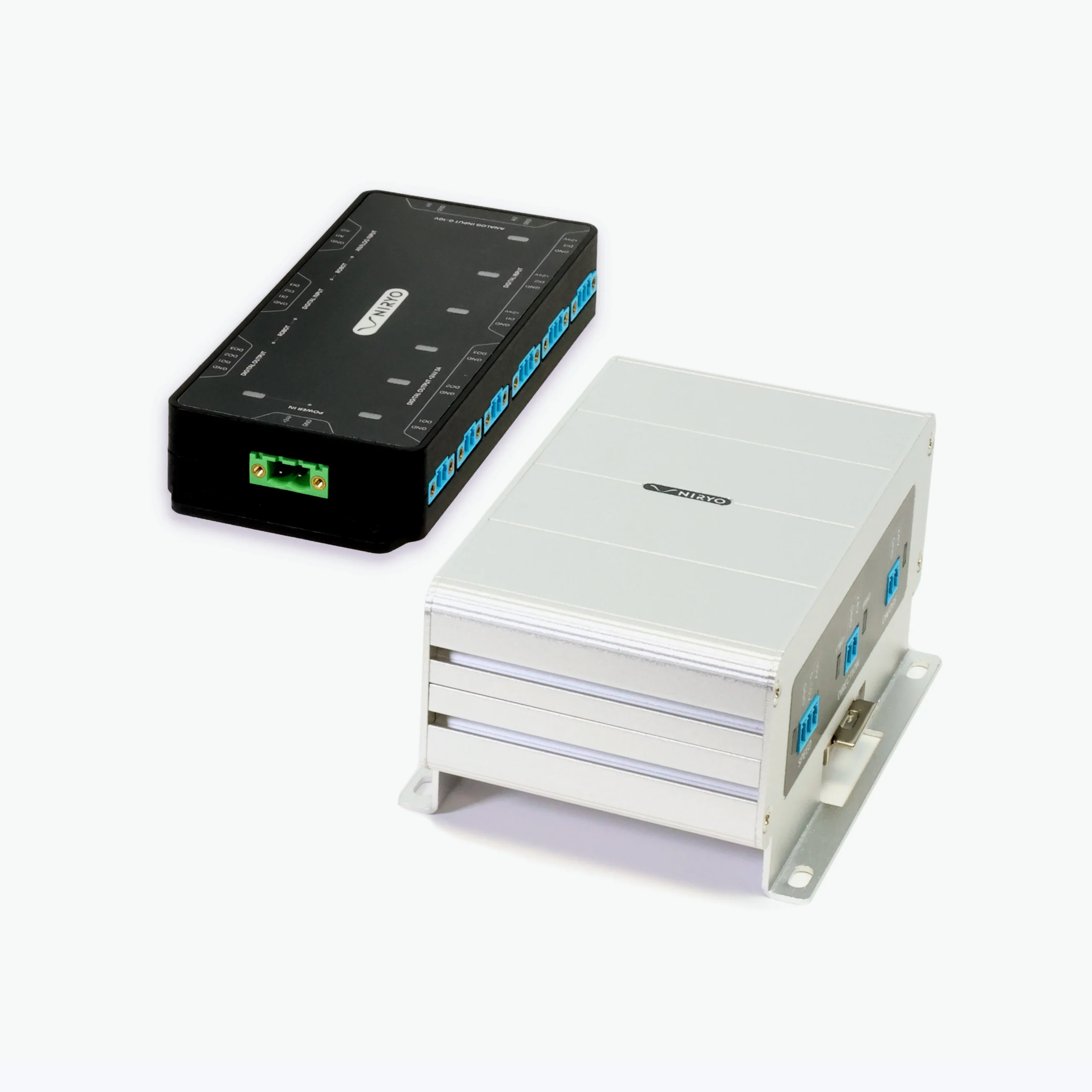

With the Automation Kit, you can upgrade your educational setup for more advanced automation applications. Comprising an I/O Adapter Module and an I/O Conveyor Module, this kit enables you to easily connect your Ned2 and Ned3 Pro to your own sensors and other 24V industrial equipment, allowing you to control the robot, conveyor, and other devices on your line via your own PLC.
1 year warranty All prices are provided excluding import duties and local taxes.
Robot side connector : TBP02P1W-381-04BE Same Sky
Robot side signal : GND, DO1, DO2, DO3
Robot side signal : 5V – 250mA
PLC side connector : TBP02P1W-381-02BE Same Sky
PLC side signal : 24V – 3A max
PLC side signal :
GND DO1
GND D02
GND DO3
Robot side connector : TBP02P1W-381-04BE Same Sky
Robot side signal : GND, DI1, DI2, DI3
Robot side signal : 5V
PLC side connector : TBP02P1W-381-02BE Same Sky
PLC side signal :
GND DI1 +24V [PNP]
GND DI2 +24V [PNP]
GND DI3 +24V [PNP]
Robot side connector : TBP02P1W-381-04BE Same Sky
Robot side signal : GND, AI1, AI2
Robot side signal : 0 to 5V
PLC side connector : TBP02P1W-381-02BE Same Sky
PLC side signal : 0 to 10V
PLC side signal :
GND AI1
GND AI2
Width: 158mm
Depth: 96mm
Height: 45mm
Weight: 160g
Conveyor Motor (6-Pin Terminal Block) :
TBP02R1-381-06BE
Dedicated for motor connection. Connects via the cable provided with the conveyor assembly.
Primary Power Input (2-Pin Terminal Block) :
TBP02R1-381-02BE
24V, GND
Alternative Power Input (DC Jack) :
PJ-066A
24V DC Input
Speed Control (3-Pin Terminal Block) :
TBP02R1-381-03BE
GND, 0-10V, 10V
Analog input for conveyor speed adjustment.
Direction Control (2-Pin Terminal Block) :
TBP02R1-381-02BE
IN, GND
Logic Low : (0V – 3.3V) = FWD (Forward)
Logic High : (3.3V – 24V) = BWD (Backward)
ON/OFF Control (2-Pin Terminal Block) :
TBP02R1-381-02BE
IN, GND
Logic Low : (0V – 3.3V) = OFF (Disabled)
Logic High : (3.3V – 24V) = ON (Enabled)
Input Voltage : Flexible 24V DC supply (Power Connector 1 or 2)
Power connector 1 : 2-pin Terminal Block TBP02R1-381-02BE
Power connector 2 : DC Power Jack PJ-066A

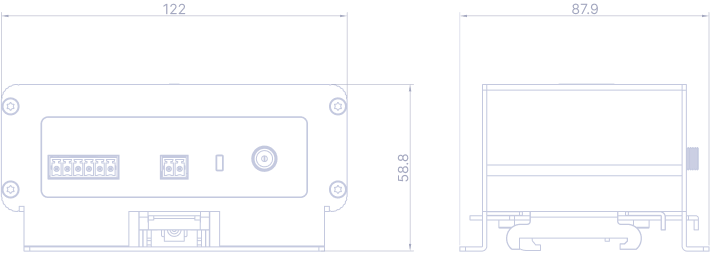

Width: 122mm
Depth: 87,9mm
Height: 58,8mm
Weight: 220g
