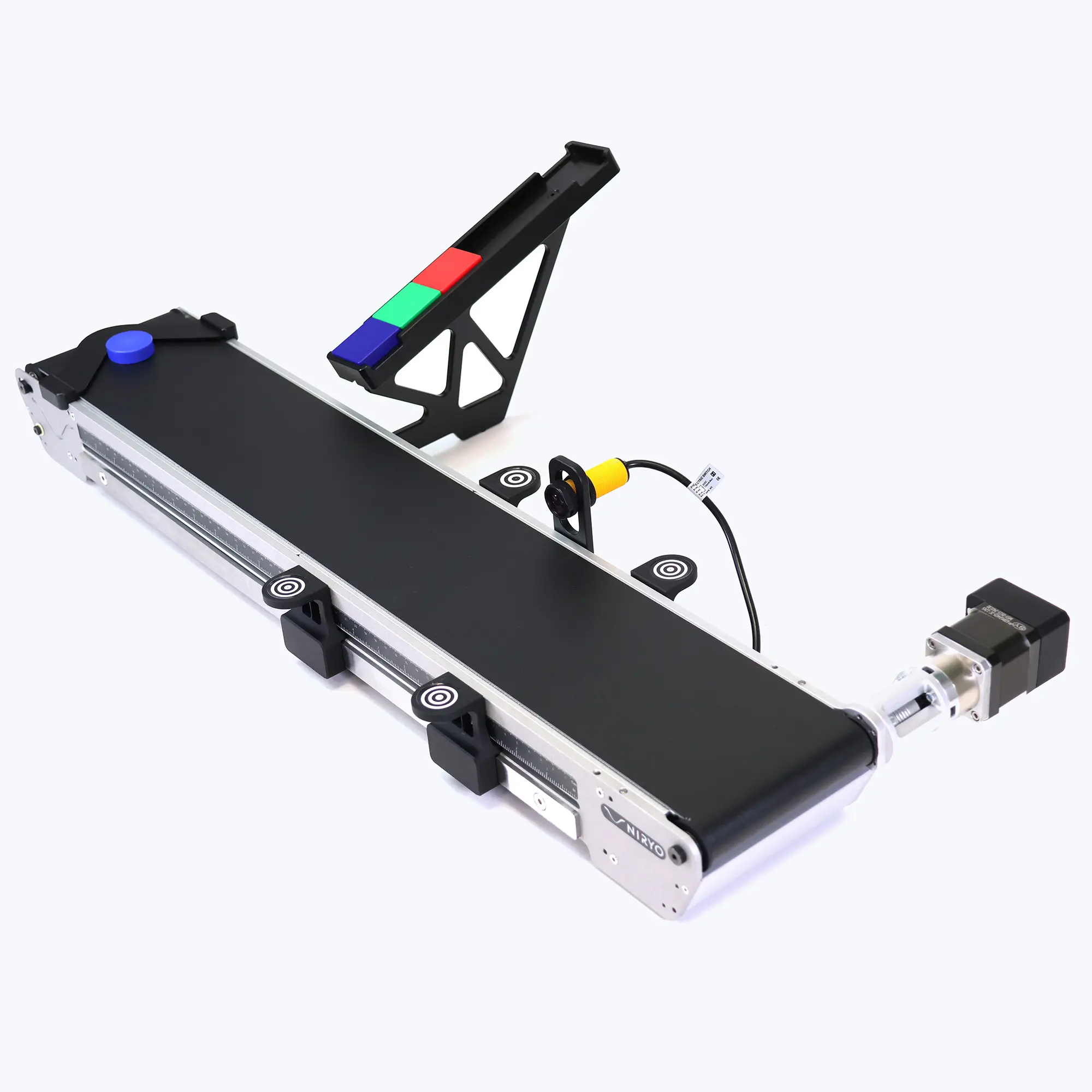

Conveyor Belt

599,00 $698,00 $ ex. VAT

Easily reproduce a production line.

This conveyor is designed to be used with or without the Niryo One: you have the ability to control it with the Niryo One and/or with our controller module that makes it autonomous.

SKU: N/A Category:

Description

Prototype an industrial production line with this autonomous conveyor.

Main features:

  • Bidirectional drive (forward and backward)
  • Adjustable speed
  • Autonomous
  • Fits in the Niryo One Ecosystem

Controlling the conveyor:

With Niryo One

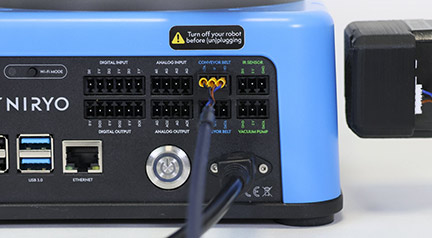

  1. Connect the conveyor to the Niryo One
  2. Choose your programming method
    (Niryo One Studio, Python API…)
  3. You are ready to control the production line.

Optional : Mount the photoelectric switch on the conveyor
Connect it to the Niryo One

Independently

  1. Connect the controller module to the motor
  2. Plug the power supply in
  3. The conveyor is working in autonomy.

Use the variator to adjust the direction and the speed
Optional : Mount the photoelectric switch on the conveyor
Connect it to the controller module

What's included:

1 x Conveyor
1 x Photoelectric switch
1 x Control box (for an autonomous use)
1 x Power supply adapter (for an autonomous use)
1 x Set of cables
6 x Handable objects (3 square containers & 3 circles)
2 x Upgraded jaws for the Standard Gripper

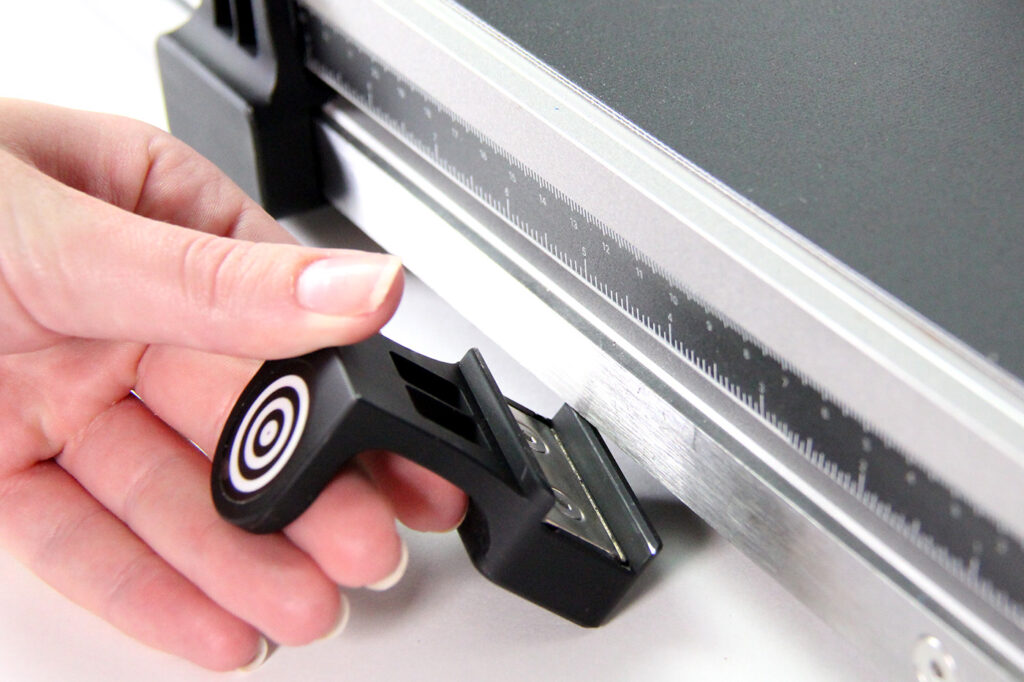

4 x Vision workspace landmarks
1 x Conveyor end stop
1 x Slope

Additional information

Weight4 kg
Dimensions790 × 310 × 150 mm

Specifications

Conveyor
Effective Delivering Distance700 mm
Dimensions712 mm × 225 mm × 60 mm
Direction of movementBidirectional
Maximum speed38 mm/s (reduced in autonomous mode)

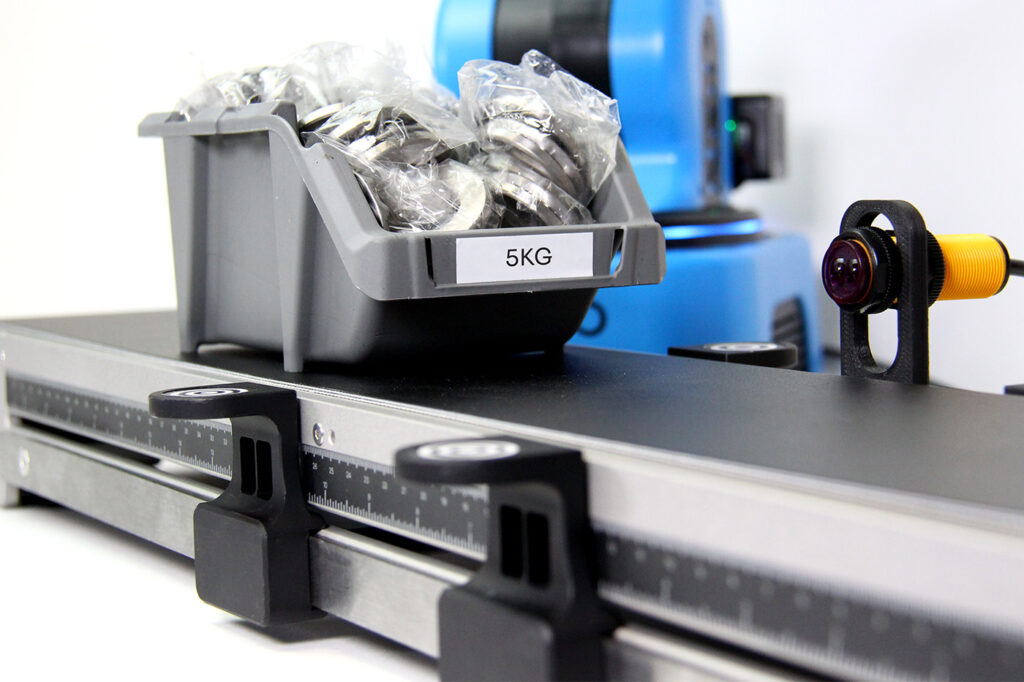

Maximum payload2 kg
Drive ModeNiryo One Stepper Motor
Control MethodNiryo One Studio / Python API / Niryo One Modbus / Arduino
IR sensor
Power4.5 V – 5.5 V
SignalDigital input
Range6 cm – 80 cm
